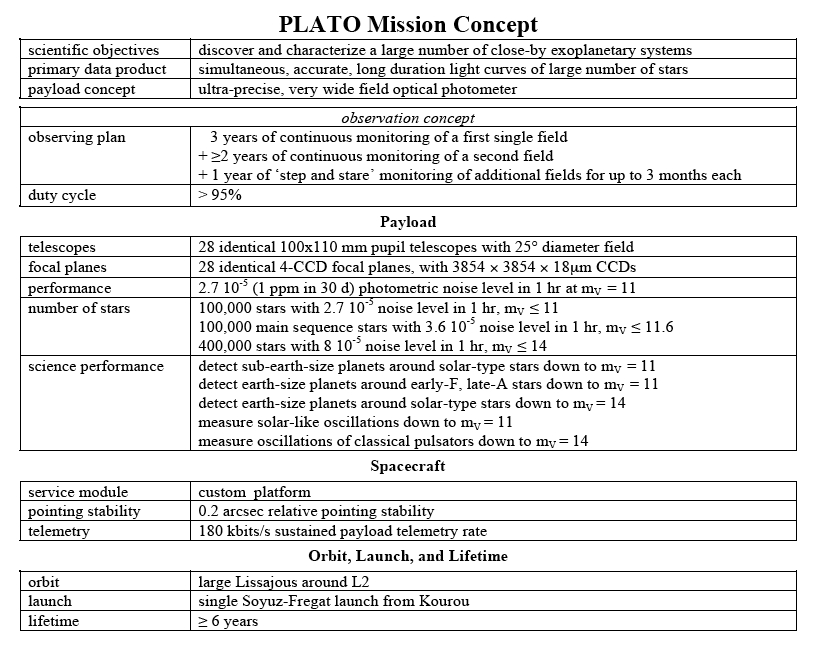

Mission concept


download full proposal (15Mbytes) caution: instrumental concept is outdated


Science objectives


Planetary transits


Asteroseismology


Follow-up observations


Science requirements


Need to go to space


Mission profile


Instrumental concept


Performances


download summary of CDF study


Comparison with existing & planned missions


International partnership




A study of exoplanetary systems



PLATO current status:

PLATO is one of the four M-class mission proposals selected for an assessment study phase, to be conducted in 2008/2009. This study is currently in progress. A first assessment study conducted by the Concurrent Design Facility (CDF) at ESTEC has just been completed. The mission and instrument concepts presented here are the result of this first analysis.


PLATO basic goals:


PLATO (PLAnetary Transits and Oscillations of stars) is a proposal submitted in response to the ESA Cosmic Vision 2015 - 2025 announcement of opportunity. Its objective is to detect and characterize exoplanets by means of their transit signature in front of a very large sample of bright stars, and measure the seismic oscillations of the parent stars orbited by these planets in order to understand the properties of the exoplanetary systems.

PLATO is the next-generation planet finder, building on the accomplishments of CoRoT and Kepler
- it will observe significantly more stars,
- which will be three magnitudes brighter (hence the precision of the measurements will be correspondingly greater as will be those of post-detection investigations, e.g. spectroscopy, asteroseismology, and eventually imaging),
- it will be capable of observing significantly smaller exoplanets, as well as planets orbiting hotter stars.



PLATO instrumental concept:

The PLATO payload will include an ensemble of 28 identical small, very wide-field telescopes,
assembled on a single platform and all looking at the same 25° diameter field. Each one of these 100mm pupil telescopes has its own CCD focal plane, comprised of  4 CCDs with 3854 x 3854 pixels of 18 microns.

The observing program will include two successive very long monitoring phases of about 3 years each on two different 550 sq deg fields, followed by a one-year long step & stare phase during which different fields will be monitored for up to 3 months each, giving also the opportunity to come back to the fields already surveyed in the to initial phases, in order to confirm long period exoplanets. The assumed mission nominal lifetime is 6 years.

PLATO will be launched and injected into an L2 orbit by a Soyuz-Fregat rocket. Every three months, the satellite will be rotated by 90° around the line of sight, in order to keep the solar panels and the sunshade oriented toward the sun.



A schematic view of the proposed concept for the PLATO payload (click to enlarge)



PLATO performances:

- PLATO will provide photometric time series with
~3 year duration and ~95% duty cycle, in two consecutive 550 deg2 fields
- a photometric noise level below 2.7
x 10-5 per hour (equivalent to 1 ppm in one month) will be reached for nearly 100,000 stars in these two consecutive fields, down to about mV=11
-
a photometric noise level below 3.6 x 10-5 per hour (equivalent to 1.3 ppm in one month) will be reached for nearly 100,000 main sequence stars, down to about mV=11.6 - as a comparison, Kepler will provide the same level of noise for about 15,000 stars.
- a photometric noise level below 8 x 10-5 per hour will be reached for  more than 400,000 main sequence stars down to mV=14
- up to 4 additional 550
deg2 fields will be surveyed for up to 3 months each in a subsequent one-year step&stare phase.

These estimated performances meet the basic requirements of the proposed mission.



Complementary observations:

The space-based observations will be complemented by ground- and space-based follow-up observations; for instance spectroscopic measurements of radial velocities of the detected exoplanetary systems will be obtained to derive the planet masses; differential visible and infrared spectroscopy during and outside secondary transit will also be performed, in particular with JWST, in order to derive information on the exoplanet atmospheres. An ancillary scientific outcome of PLATO will be an unprecedented database for the study of variable stars and stellar internal structure and evolution using asteroseismology down to ppm level, on all time scales from seconds to years, on all types of stars.
