Families of granules, acoustic events and magnetic elements from HINODE observations

J.-M. Malherbe, Th. Roudier, Z. Franck et al, 2014, Observatoire de Paris, Observatoire Midi Pyrénées, Lockheed Martin Solar Astrophysics Laboratory

---

Hinode is a Japanese mission developed and launched by ISAS/JAXA, with NAOJ as domestic partner and NASA and STFC (UK) as international partners. It is operated by these agencies in co-operation with ESA and NSC (Norway).

I - HINODE 6 H sequence, 14 APRIL 2010, SOT NFI, FeI 5576, 9 wavelengths step 40 mA, pixel size 0.08 arc sec, Dopplershifts from the bisector method, chords 80 mA (180 km), 120 mA (130 km), 160 mA (80 km)

MPEG movie 1

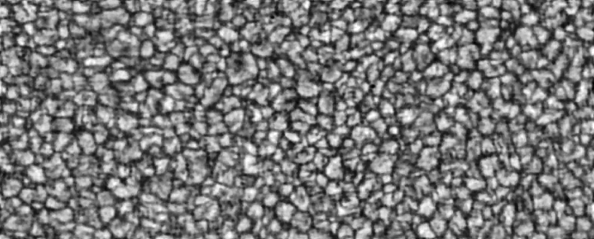

Intensity in the line wings of FeI 5576 with oscillations filtered

See also the MPEG4 movie

MPEG movie 2

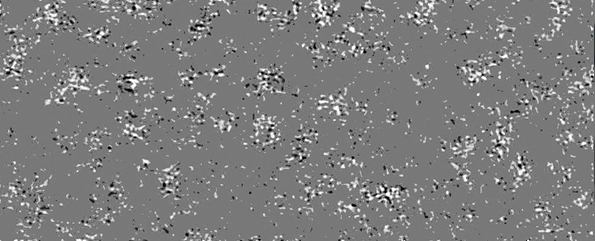

FeI 5576 Acoustic events (white/black for upward/downward acoustic flux)

See also the MPEG4 movie

MPEG movie 3

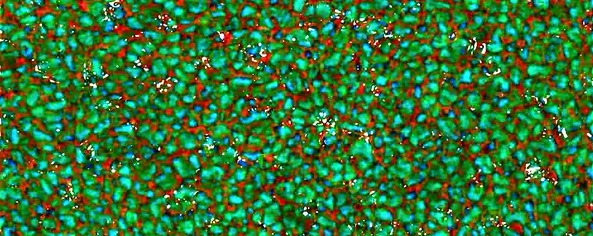

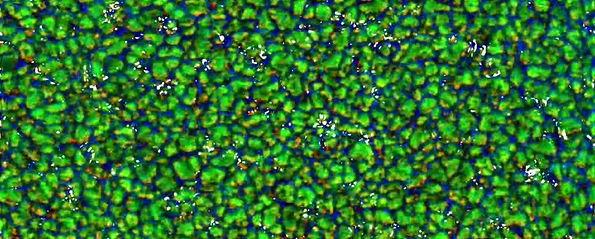

FeI 5576 Acoustic events (white), line wing intensity (green), vertical velocities (redshifts/blueshifts)

See also the MPEG4 movie

MPEG movie 4

FeI 5576 Acoustic events (white), line wing intensity (green), gradients of vertical velocities (red/blue for negative/positive)

See also the MPEG4 movie

MPEG movie 5

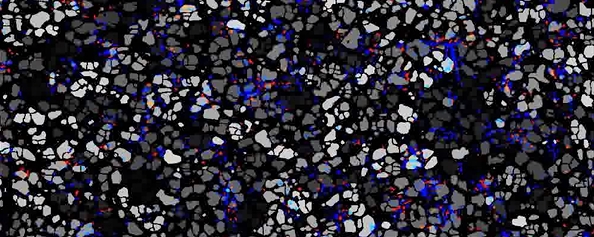

FeI 5576 families of fragmenting granules, acoustic events (acoustic flux above 2 sigma, red/blue for downward/upward flux)

See also the MPEG4 movie

MPEG movie 6

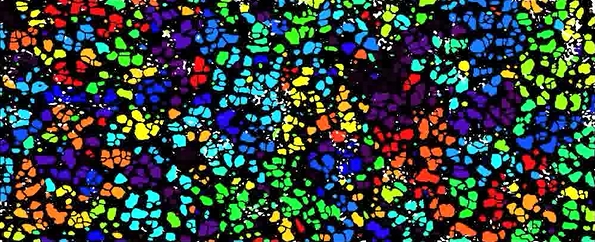

FeI 5576 families of fragmenting granules, acoustic events (absolute value of acoustic flux above 3 sigma, white)

See also the MPEG4 movie

MPEG movie 7

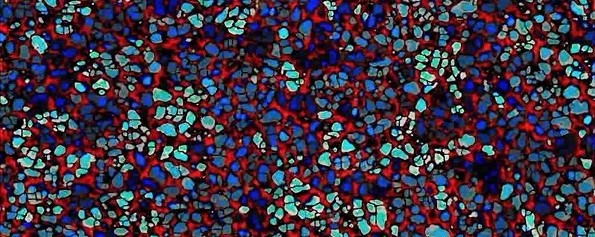

FeI 5576 families of fragmenting granules, vertical velocities (redshifts/blueshifts)

See also the MPEG4 movie

MPEG movie 8

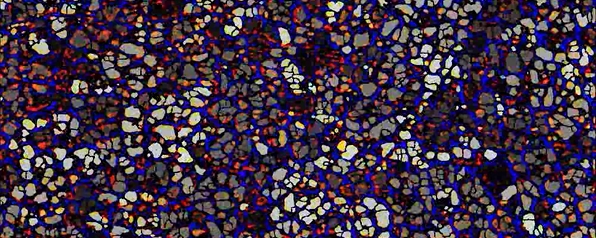

FeI 5576 families of fragmenting granules, gradients of vertical velocities (red/blue for negative/positive)

See also the MPEG4 movie

II - HINODE 24 H sequence, 29 AUGUST 2007, SOT NFI, FeI 6302, Stokes I V, pixel size 0.08 arc sec, SOT BFI G band and blue continuum, pixel size 0.11 arc sec

MPEG movie 9

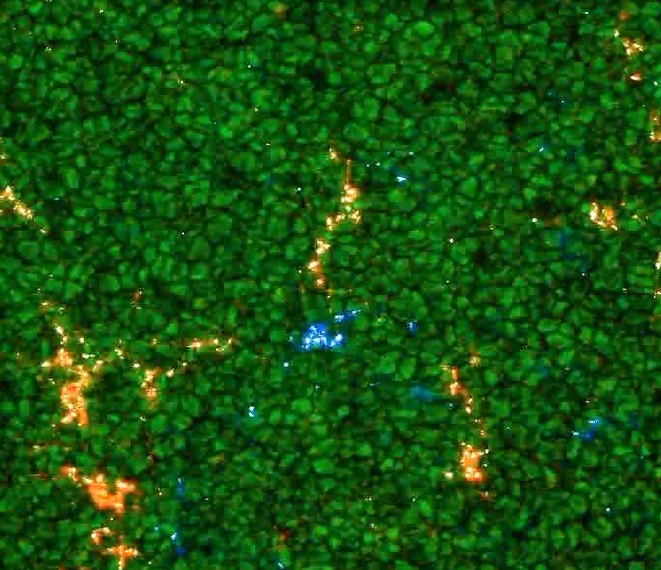

G band (oscillations not filtered), Network Bright Points (NBP,white) and FeI 6302 Stokes V (red/blue for south/north polarities)

See also the MPEG4 movie

MPEG movie 10

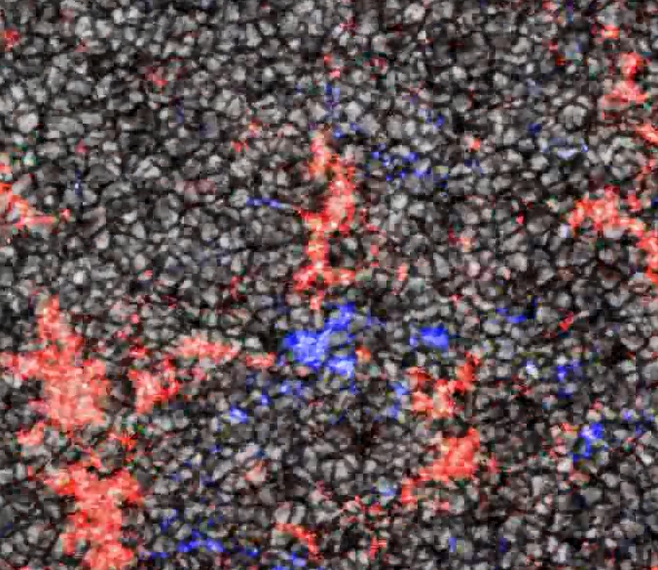

G band (oscillations not filtered), Network Bright Points (NBP,white) and FeI 6302 Stokes V (red/blue for south/north polarities) above 1.25 % polarization rate

See also the MPEG4 movie

MPEG movie 11

Families of fragmenting granules, Network Bright Points (NBP, green) and FeI 6302 Stokes V (red/blue for south/north polarities) above 1.25 % polarization rate

See also the MPEG4 movie

MPEG movie 12

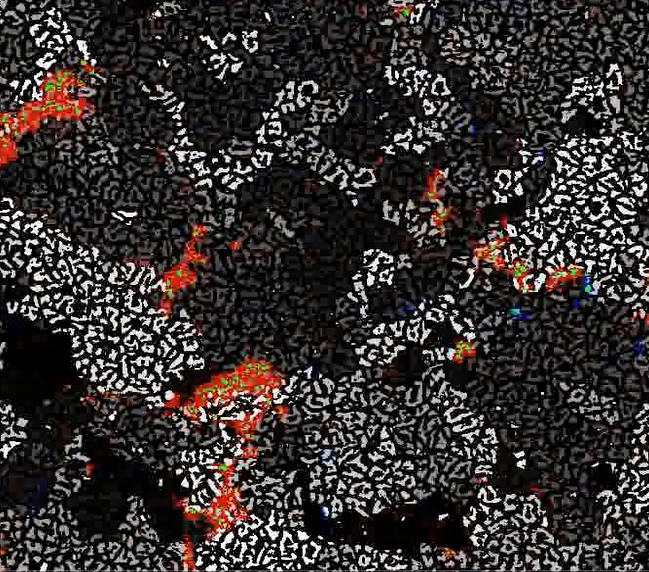

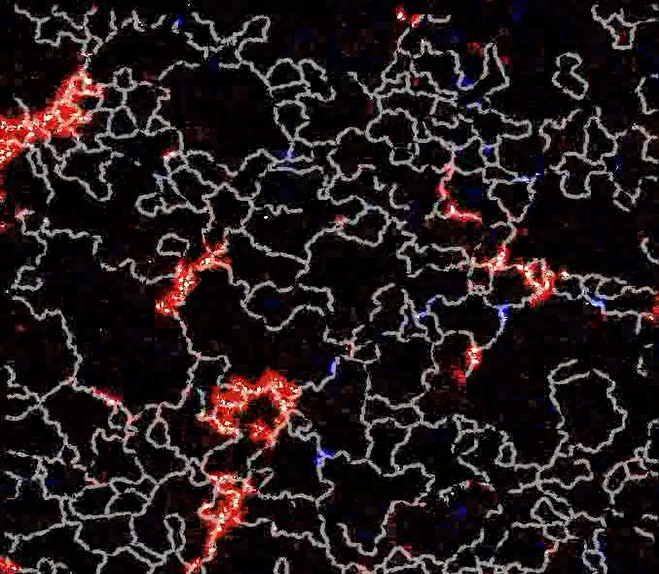

Interfamilies, Network Bright Points (NBP, white) and FeI 6302 Stokes V (red/blue for south/north polarities) above 1.25 % polarization rate

See also the MPEG4 movie
