Acoustic flux in the granulation in FeI 5576 from HINODE observations
J.-M. Malherbe, Th. Roudier et al, 2010, Observatoire de Paris, Observatoire Midi Pyrénées, Lockheed Martin Solar Astrophysics Laboratory
HINODE 75 mn sequence, SOT NFI, FeI 5576, 9 wavelengths step 40 mA, pixel size 0.08 arc sec, time step 28.75 s, 158 cycles
Dopplershifts from the bisector method, chords 80 mA (180 km), 120 mA (130 km), 160 mA (80 km)
MPEG1 movies 640 x 640 pixels (6 Mbytes)
High quality MPEG4 movies 1006 x 1010 pixels (22 Mbytes)
High quality JavaScript movies 1006 x 1010 pixels (40 Mbytes)
Hinode is a Japanese mission developed and launched by ISAS/JAXA, with NAOJ as domestic partner and NASA and STFC (UK) as international partners. It is operated by these agencies in co-operation with ESA and NSC (Norway).
Movie 0
The full sequence of RAW data

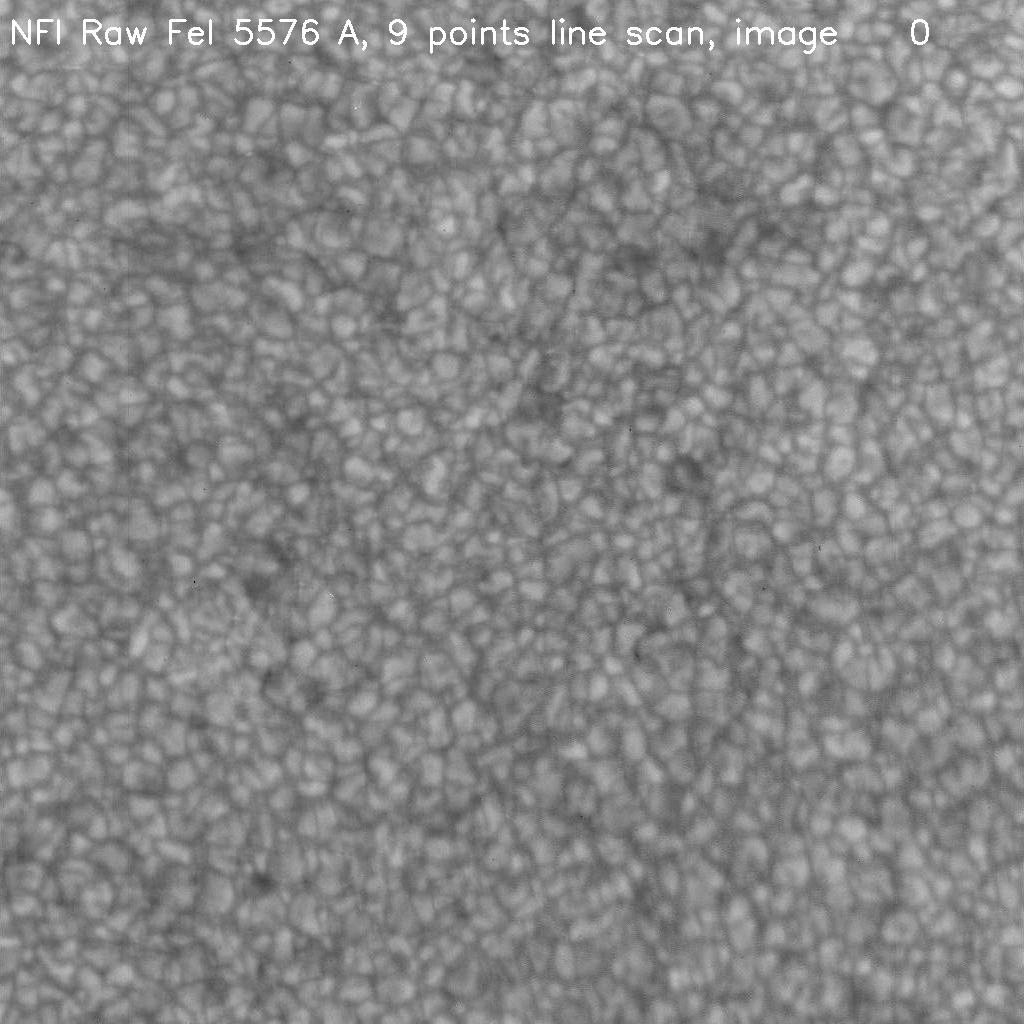

The full sequence of RAW FeI 5576 A data: 158 time steps of 9 points line scans, corresponding
to 158 * 9 = 1422 images
MPEG4 high res movie
Movie 1

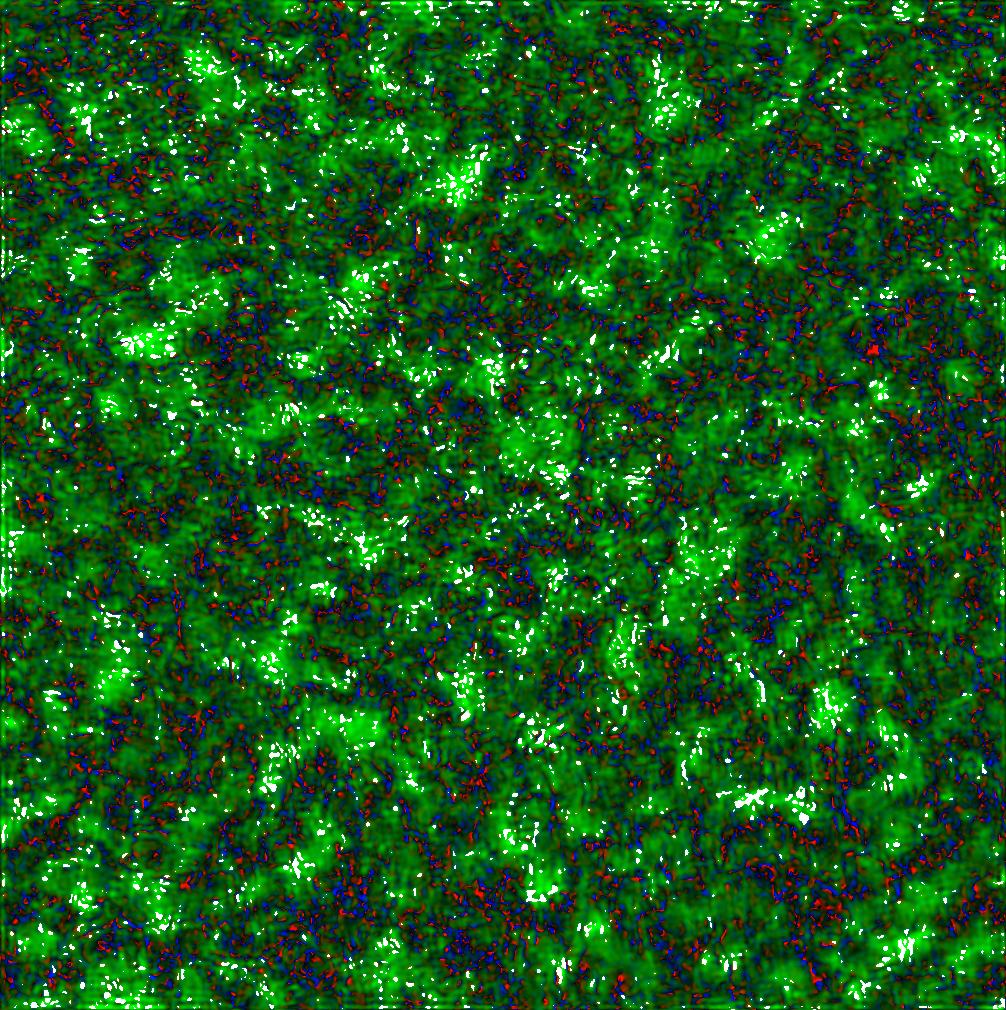

Amplitude of velocities (green), phase lag between 130 and 180 km (blue = positive, red = negative), absolute value of acoustic flux (white)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie

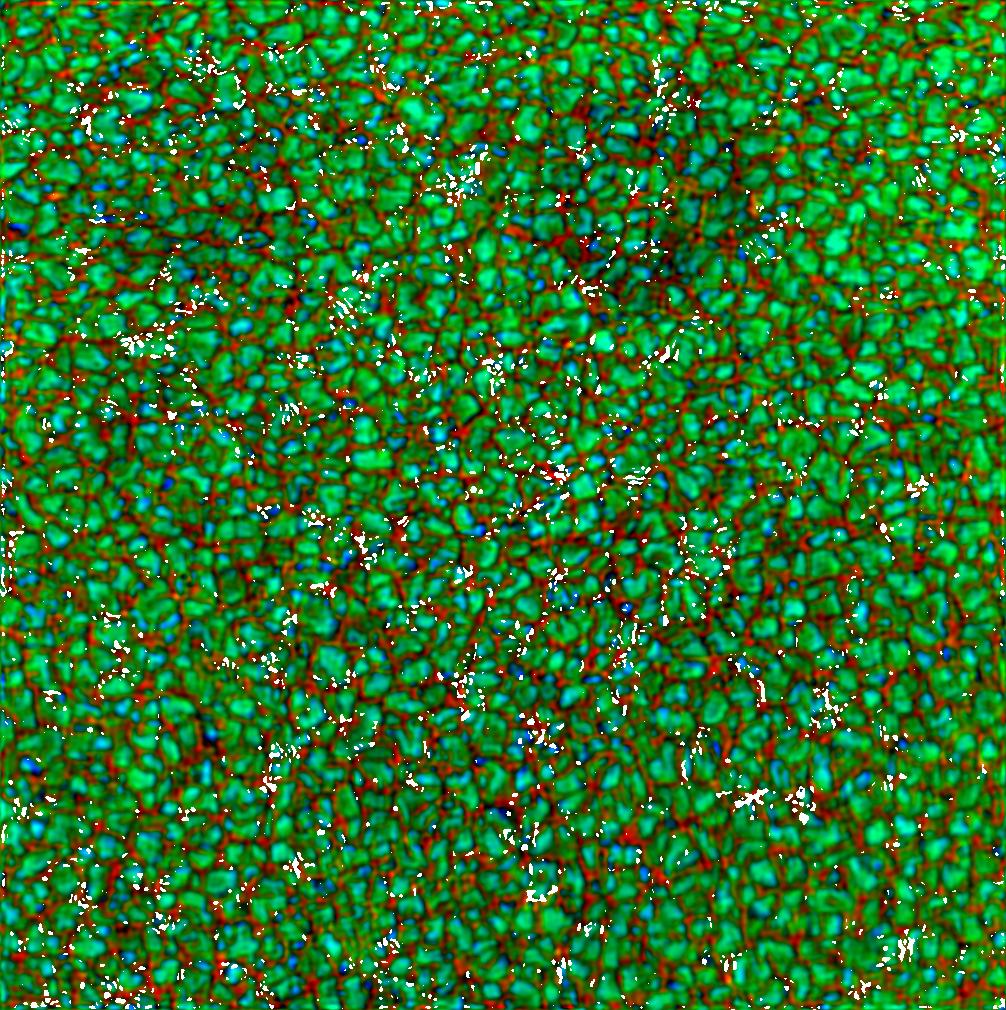

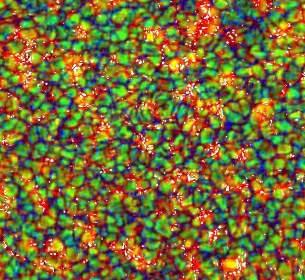

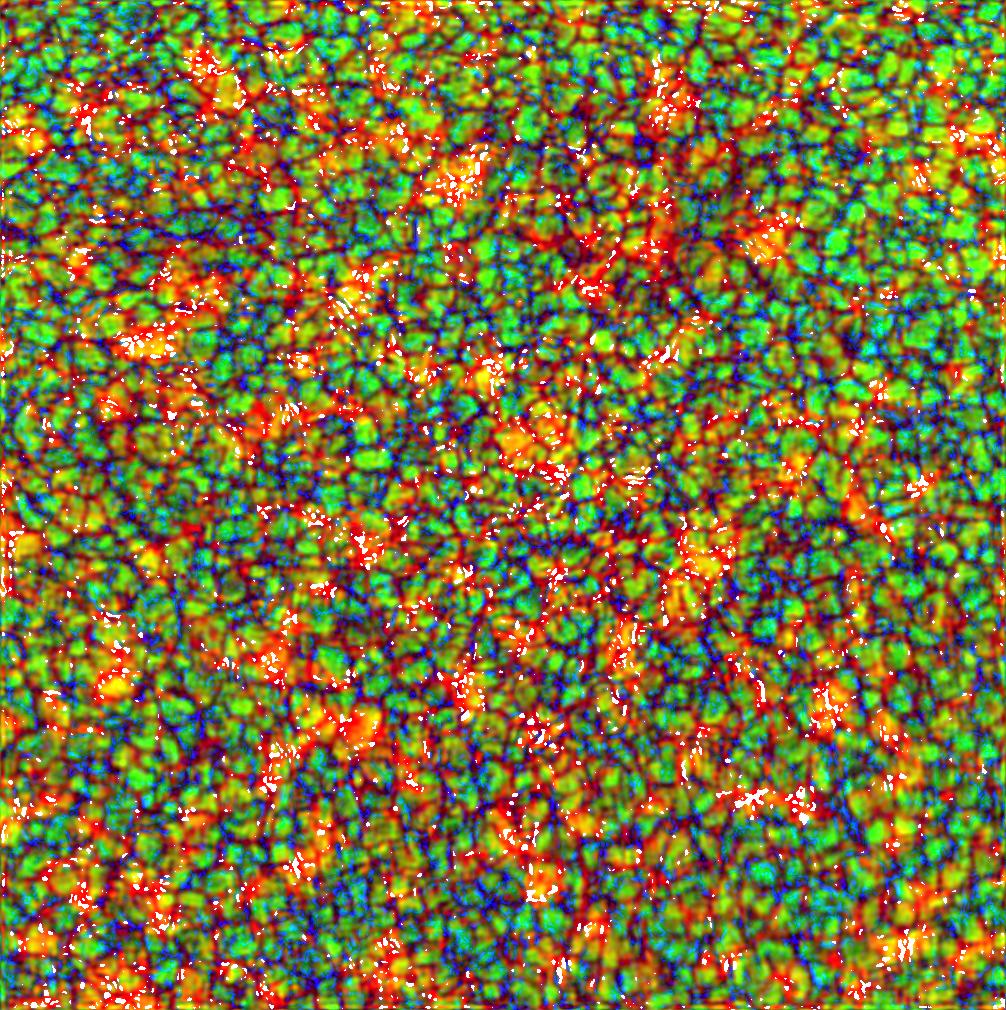

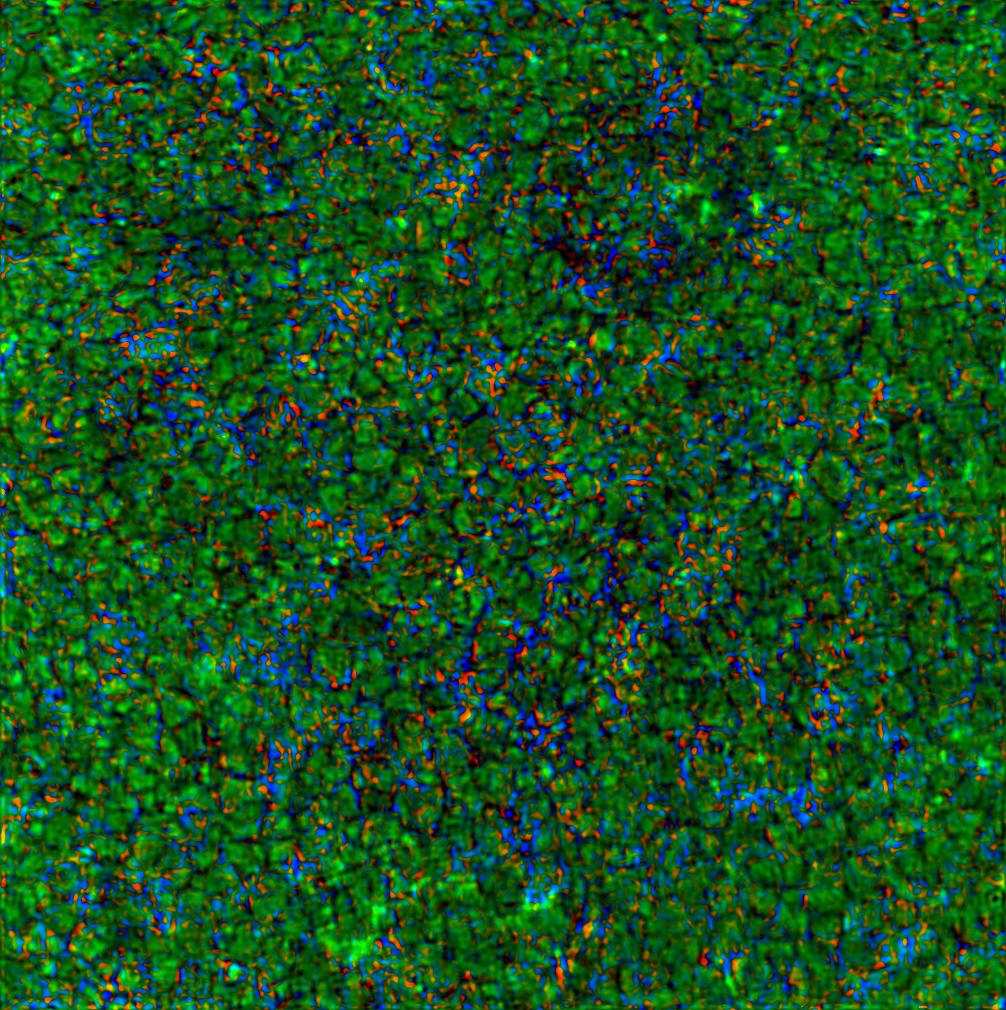

Continuum intensity (green), amplitude of velocities (red), absolute value of phase lag between 130 and 180 km (blue), absolute value of acoustic flux (white)
MPEG movie
MPEG4 high res movie
High resolution Javascript movie
Movie 2

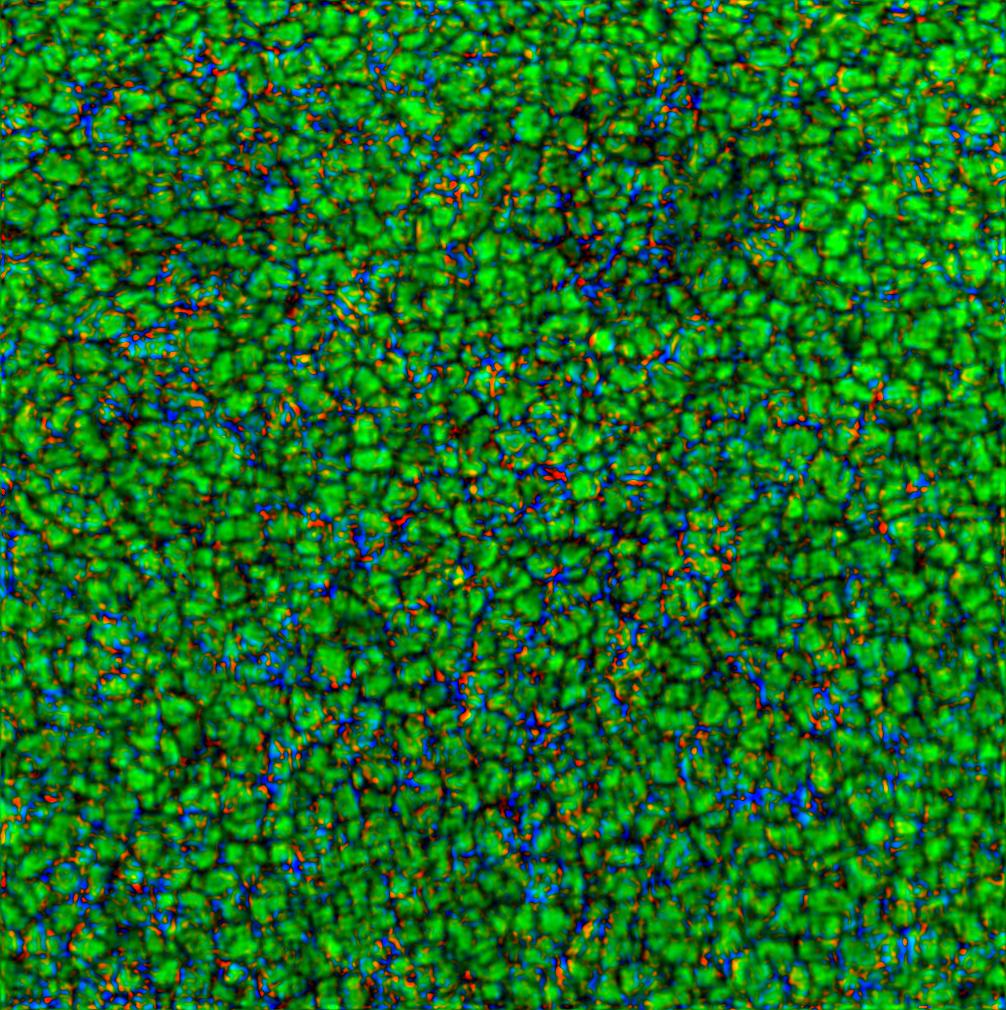

Continuum intensity (green) and acoustic flux between 130 and 180 km (blue = up, red = down)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie
Line center intensity (green) and acoustic flux between 130 and 180 km (blue = up, red = down)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie
Movie 3

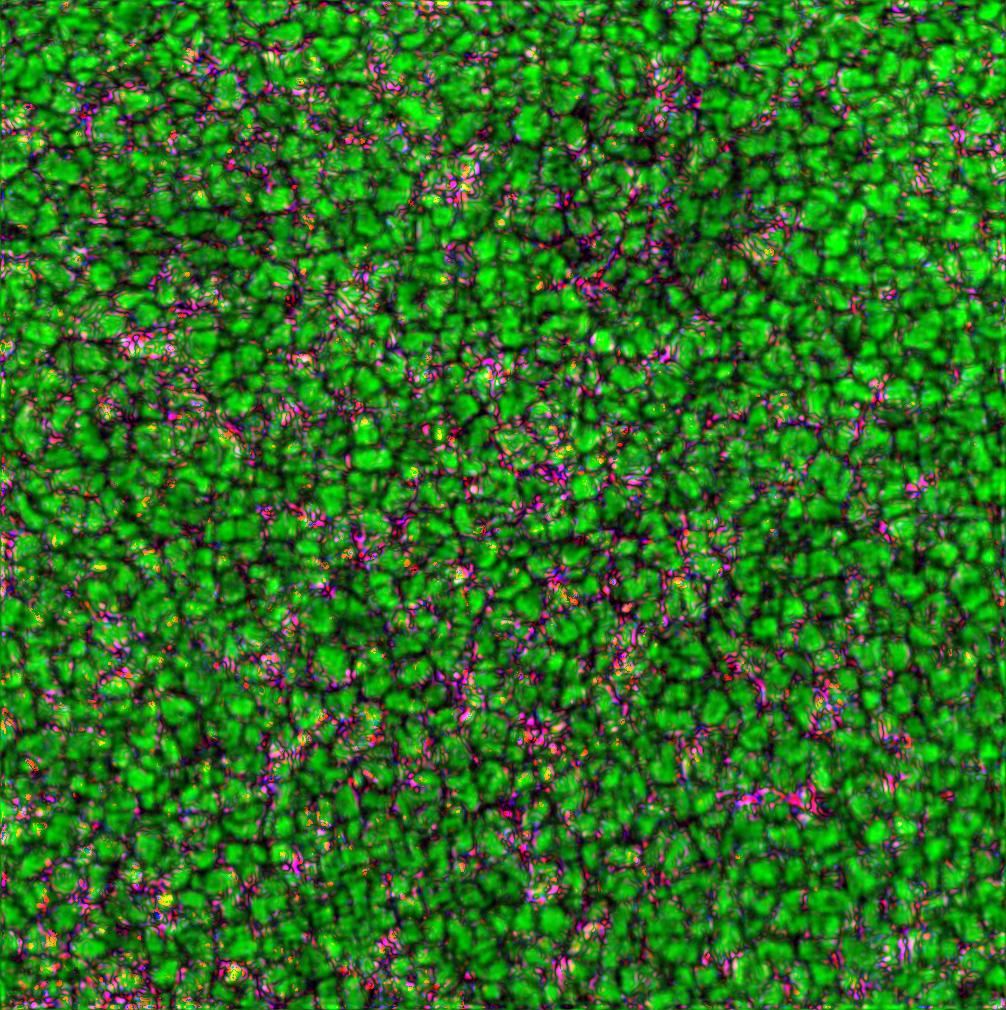

Continuum intensity (green), layer 1 acoustic flux (130-180 km, red), layer 2 acoustic flux (80-130 km, blue)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie
Movie 4

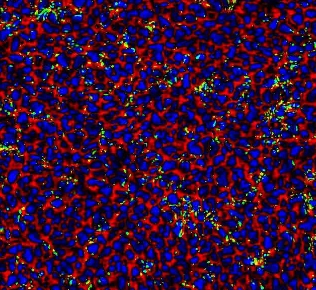

Continuum intensity (green), radial velocity at 130 km (blue = up, red = down), absolute value of acoustic flux (130-180 km, white)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie
Radial velocity alone at 130 km (blue = up, red = down) together with acoustic flux
MPEG movie
Movie 5

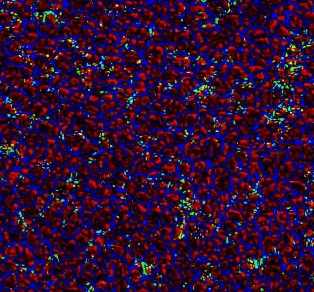

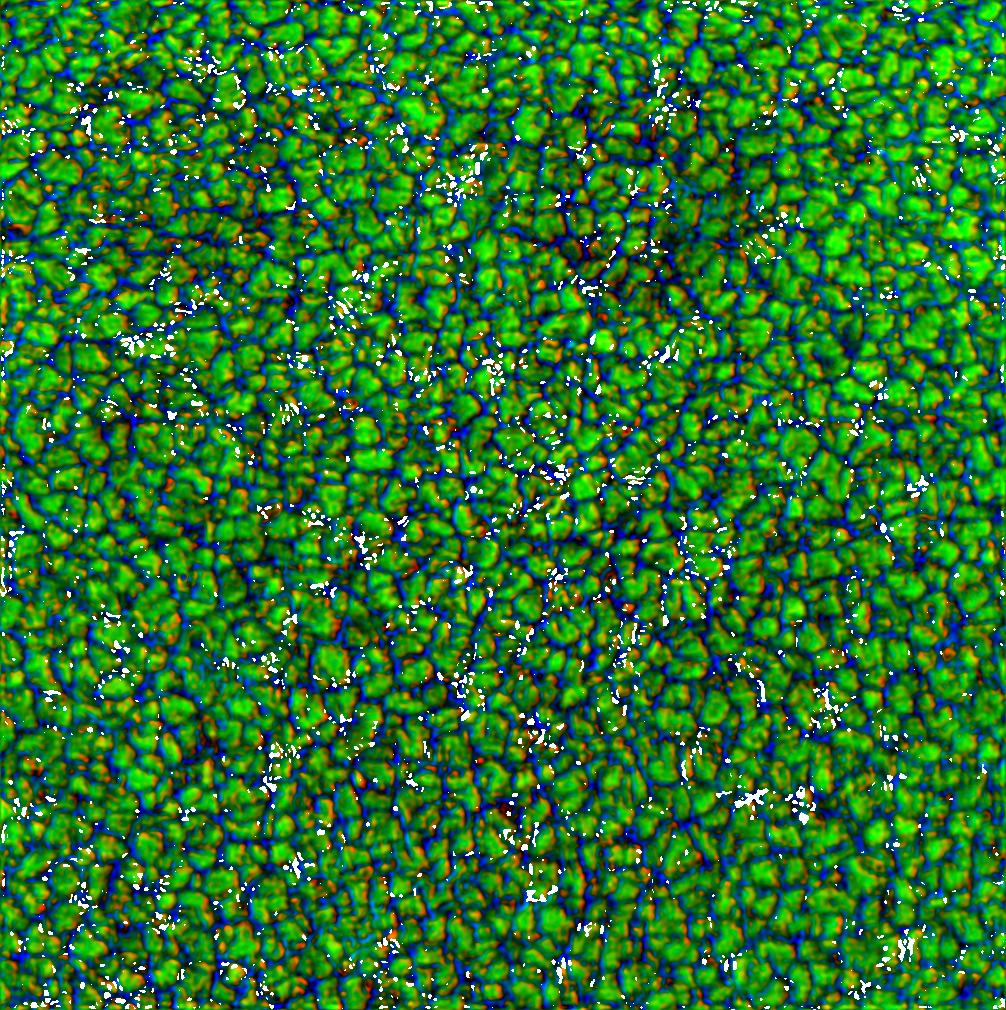

Continuum intensity (green), vertical GRADIENT of radial velocity 130-180 km (blue = positive, red = negative), absolute value of acoustic flux (130-180 km, white)
MPEG1 movie
MPEG4 high res movie
High resolution Javascript movie
Radial velocity gradient alone (blue = positive, red = negative) together with acoustic flux
MPEG movie
Other Movies
Trees of Fragmenting Granules (TFG, false colour, granules of the same family have the same colour) and absolute value of acoustic flux (white)
MPEG movie
Acoustic flux 130 - 180 km (white = up, black = down)
MPEG movie
Radial velocity oscillations at 130 km (blue = up, red = down), continuum intensity (green) and absolute value of acoustic flux (white)
MPEG movie
Velocity divergence at mesogranular scale (blue = positive, red = negative), continuum intensity (green) and absolute value of acoustic flux (white)
MPEG movie
Divergence of horizontal velocities at 130 km (blue = positive, red = negative), continuum intensity (green) and absolute value of acoustic flux (white)
Vorticity of horizontal velocities at 130 km (blue = positive, red = negative), continuum intensity (green) and absolute value of acoustic flux (white)
MPEG movie
Lagrangian acceleration or total force per unit mass (blue = positive, red = negative), continuum intensity (green) and absolute value of acoustic flux (white)
MPEG movie
